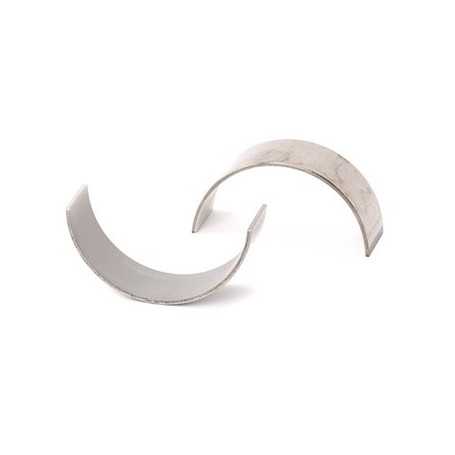

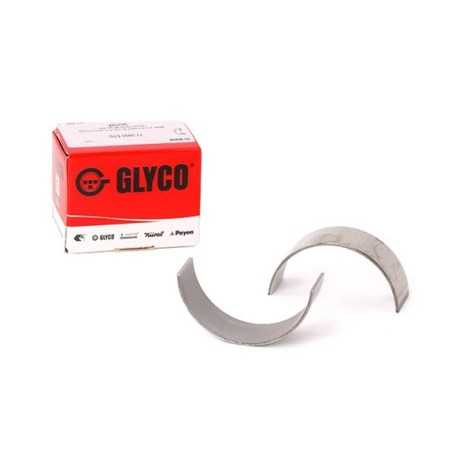

GLYCO 71-3930 STD Connecting Rod Bearing – Bronze-Plated Steel Backing
Technical Specifications:
Brand: GLYCO
Part Number: 71-3930 STD
Bearing Type: Connecting Rod Bearing
Material: Bronze-plated steel backing
Surface Treatment: Cathodic spray (irradiation spraying)
Width: 20.4 mm
Standard Thickness: 1.403 mm
For Housing Bore Diameter (min–max): 53.7 mm – 53.712 mm
For Shaft Diameter (min–max): 50.858 mm – 50.878 mm
Bearing Clearance (min–max): 0.02 mm – 0.07 mm
Size: Standard (DST)
Features:
Precision-engineered to OEM specifications
Excellent wear resistance under high-stress conditions
Stable performance and extended lifespan
Ideal for engine overhauls and performance rebuilds
OEM
VAG 038 105 701 B
VAG 04L 105 701 B
VAG 04L 105 701 C
Compatible Applications – GLYCO 71-3930 STD Connecting Rod Bearing
Compatible Vehicle Models:
Volkswagen Golf (Mk4, Mk5, Mk6, Mk7), Polo 9N, Passat B6 Variant, Touran 1T2, Tiguan 5N, T5 Kasten
Audi A3 (8L, 8P, 8P1), A4 (B7 Avant, B8 Avant), A6 C6 Avant, Q5 8R
Seat Ibiza 6L1, Leon 1P
Skoda Octavia (Mk2 Combi, 5E)
Compatible Engine Types:
Diesel engines: 1.9 TDI, 1.9 TDI 4motion, 1.9 TDI Cupra R, 1.9 TDI Joya Racer, 1.9 TDI Syncro, 1.9 TDI RS, 2.0 TDI (including 4motion, 16V, quattro, 4x4, DOC, RWD, BlueMotion, RS, AWD, 4Drive)
High-performance variants: 2.0 GTD, 2.0 BiTDI, 2.0 BiTDI 4motion, 2.5 TDI, 2.5 TDI 4motion, 2.5 R5 TDI
Newer designations: 30 TDI, 35 TDI, 35 TDI quattro, 40 TDI, 40 TDI quattro
Others: 2.0 DI-D, Di-D 4WD, 2.9 i
Engine Power Range:
From 75 to 240 horsepower (or 55 to 176 kW)
Vehicle Production Period:
1991 to 2024
Manufacturer Reference:
GLYCO 71-3930 STD
Equivalent OE Numbers:
038 105 701 B, 04L 105 701 B, 04L 105 701 C
Constructeur/Model/Type/KW/Construction
AUDI
AUDI A3 3/5 portes (8L1) ( 08.2000 - 05.2003 , 130 CH)
AUDI A6 C5 Berline (4B2) ( 08.2001 - 01.2005 , 130 CH)
AUDI A6 C5 Avant (4B5) ( 08.2001 - 01.2005 , 130 CH)
AUDI A4 B6 Berline (8E2) ( 11.2000 - 12.2004 , 116 - 130 CH)
AUDI A4 B6 Avant (8E5) ( 09.2001 - 12.2004 , 116 - 130 CH)
AUDI A3 3/5 portes (8P1) ( 05.2003 - 08.2012 , 136 - 170 CH)
AUDI A6 C6 Berline (4F2) ( 07.2004 - 03.2011 , 121 - 170 CH)
AUDI A3 Sportback (8PA) ( 09.2004 - 03.2013 , 136 - 170 CH)
AUDI A4 B7 Berline (8EC) ( 11.2004 - 06.2008 , 116 - 170 CH)
AUDI A4 B7 Avant (8ED) ( 11.2004 - 06.2008 , 116 - 170 CH)
AUDI A6 C6 Avant (4F5) ( 06.2005 - 08.2011 , 121 - 170 CH)
AUDI TT Coupé (8J3) ( 06.2008 - 06.2014 , 170 CH)
AUDI TT Roadster (8J9) ( 06.2008 - 06.2014 , 170 CH)
AUDI A5 B8 Coupé (8T3) ( 08.2008 - 01.2017 , 163 - 190 CH)
AUDI A4 B8 Berline (8K2) ( 11.2007 - 12.2015 , 120 - 190 CH)
AUDI A3 Cabriolet (8P7) ( 04.2008 - 05.2013 , 136 - 140 CH)
AUDI A4 B8 Avant (8K5) ( 04.2008 - 12.2015 , 120 - 190 CH)
AUDI Q5 (8RB) ( 11.2008 - 05.2017 , 136 - 190 CH)
AUDI A5 B8 Cabriolet (8F7) ( 05.2009 - 01.2017 , 143 - 190 CH)
AUDI A4 B8 Allroad (8KH) ( 04.2009 - 05.2016 , 136 - 190 CH)
AUDI A5 B8 Sportback (8TA) ( 09.2009 - 01.2017 , 136 - 190 CH)
AUDI A1 3/5 portes (8X1, 8XK) ( 09.2011 - 04.2015 , 136 - 143 CH)
AUDI A6 C7 Berline (4G2, 4GC) ( 03.2011 - 09.2018 , 136 - 190 CH)
AUDI A6 C7 Avant (4G5, 4GD) ( 05.2011 - 09.2018 , 136 - 190 CH)
AUDI A1 Sportback (8XA, 8XK) ( 09.2011 - 04.2015 , 136 - 143 CH)
AUDI Q3 (8UB, 8UG) ( 06.2011 - 10.2018 , 120 - 184 CH)
AUDI A3 3/5 portes (8V1, 8VK) ( 04.2012 - 10.2020 , 110 - 184 CH)
AUDI A3 Sportback (8VA, 8VF) ( 09.2012 - 10.2020 , 110 - 184 CH)
AUDI A3 Berline (8VS, 8VM) ( 05.2013 - 10.2020 , 110 - 184 CH)
AUDI A3 Cabriolet (8V7, 8VE) ( 10.2013 - 10.2020 , 136 - 184 CH)
AUDI TT Coupé (FV3, FVP) ( 07.2014 - ... , 184 CH)
AUDI TT Roadster (FV9, FVR) ( 11.2014 - ... , 184 CH)
AUDI A4 B9 Berline (8W2, 8WC) ( 05.2015 - ... , 122 - 190 CH)
AUDI A4 B9 Avant (8W5, 8WD) ( 08.2015 - 09.2020 , 122 - 190 CH)
AUDI A4 B9 Allroad (8WH) ( 01.2016 - ... , 136 - 190 CH)
AUDI Q2 (GAB) ( 07.2016 - ... , 143 - 190 CH)
AUDI A5 B9 Coupé (F53) ( 06.2016 - ... , 150 - 190 CH)
AUDI A5 B9 Sportback (F5A) ( 08.2016 - ... , 136 - 190 CH)
AUDI Q5 (FYB) ( 06.2016 - ... , 136 - 190 CH)
AUDI A5 B9 Cabriolet (F57) ( 11.2016 - ... , 150 - 190 CH)
AUDI A6 C8 Berline (4A2) ( 02.2019 - ... , 190 CH)
AUDI A6 C8 Avant (4A5) ( 02.2019 - ... , 190 CH)
AUDI Q3 (F3B) ( 09.2018 - ... , 150 - 190 CH)
AUDI Q3 Sportback (F3N) ( 07.2019 - ... , 150 - 190 CH)
FORD
FORD Galaxy Mk1 (WGR) MPV ( 02.2003 - 05.2006 , 130 - 150 CH)
FORD Transit Mk3 Minibus (VE64) ( 01.1991 - 09.1994 , 145 CH)
MAN
MAN TGE Camionnette (UY_) ( 02.2017 - ... , 102 - 177 CH)
MAN TGE Camion plate-forme/Châssis (UZ_) ( 11.2016 - ... , 102 - 177 CH)
MAN TGE Minibus (UY_) ( 02.2017 - ... , 102 - 177 CH)
MITSUBISHI
MITSUBISHI Grandis (NA4W) ( 09.2005 - 03.2010 , 136 CH)
MITSUBISHI Outlander II SUV (CW_W) ( 02.2007 - 11.2012 , 140 CH)
MITSUBISHI Lancer VIII Berline (CY_A, CZ_A) ( 01.2008 - ... , 140 CH)
MITSUBISHI Lancer VIII 3/5 portes (CX_A) ( 06.2008 - ... , 140 CH)
MITSUBISHI Outlander II (CW_W) ( 12.2006 - 06.2010 , 140 CH)
SEAT
SEAT Alhambra I (7V8, 7V9) ( 06.2000 - 03.2010 , 115 - 150 CH)
SEAT Toledo II Berline (1M2) ( 10.2000 - 05.2006 , 130 - 150 CH)
SEAT Leon I 3/5 portes (1M1) ( 09.2000 - 06.2006 , 130 - 150 CH)
SEAT Ibiza III 3/5 portes (6L) ( 02.2002 - 11.2009 , 131 - 160 CH)
SEAT Córdoba II Berline (6L2) ( 10.2002 - 11.2009 , 131 CH)
SEAT Altea (5P1) ( 03.2004 - 07.2015 , 136 - 170 CH)
SEAT Toledo III (5P2) ( 04.2004 - 05.2009 , 136 - 170 CH)
SEAT Leon II 3/5 portes (1P1) ( 07.2005 - 12.2012 , 136 - 170 CH)
SEAT Altea XL (5P5, 5P8) ( 10.2006 - 07.2015 , 136 - 170 CH)
SEAT Ibiza IV 3/5 portes (6J5, 6P1) ( 01.2010 - 05.2015 , 143 CH)
SEAT Ibiza IV Sportcoupe (6J, 6P) ( 01.2010 - 05.2015 , 143 CH)
SEAT Exeo Berline (3R2) ( 12.2008 - 05.2013 , 120 - 170 CH)
SEAT Exeo ST (3R5) ( 05.2009 - 05.2013 , 120 - 170 CH)
SEAT Alhambra II (710, 711) ( 06.2010 - 12.2022 , 115 - 184 CH)
SEAT Leon III 3/5 portes (5F1) ( 09.2012 - 08.2020 , 110 - 184 CH)
SEAT Leon III SC (5F5) ( 02.2013 - 08.2018 , 110 - 184 CH)
SEAT Leon III ST (5F8) ( 02.2013 - 08.2020 , 110 - 184 CH)
SEAT Ateca (KH7) ( 04.2016 - ... , 110 - 190 CH)
SEAT Leon ST Van / Break (5F8) ( 04.2013 - 08.2018 , 150 - 184 CH)
SEAT Leon Van / 3/5 portes (5F1) ( 10.2012 - 08.2018 , 150 - 184 CH)
SEAT Tarraco (KN2_) ( 09.2018 - ... , 150 - 190 CH)
SEAT Leon IV (KL1) ( 06.2021 - ... , 143 CH)
SKODA
SKODA Octavia I 5 portes (1U2) ( 09.2002 - 09.2004 , 130 CH)
SKODA Octavia I Combi (1U5) ( 09.2002 - 09.2004 , 130 CH)
SKODA Fabia I 5 portes (6Y2) ( 06.2003 - 03.2008 , 130 CH)
SKODA Superb I Berline (3U4) ( 12.2001 - 03.2008 , 105 - 140 CH)
SKODA Octavia II 5 portes (1Z3) ( 02.2004 - 06.2013 , 110 - 170 CH)
SKODA Octavia II Combi (1Z5) ( 02.2004 - 06.2013 , 110 - 170 CH)
SKODA Superb II 5 portes (3T4) ( 03.2008 - 05.2015 , 140 - 170 CH)
SKODA Yeti (5L) ( 05.2009 - 12.2017 , 110 - 170 CH)
SKODA Superb II Break (3T5) ( 10.2009 - 05.2015 , 140 - 170 CH)
SKODA Octavia III 3/5 portes (5E3, NL3, NR3) ( 11.2012 - 10.2020 , 143 - 184 CH)
SKODA Octavia III Combi (5E5) ( 11.2012 - 10.2020 , 143 - 184 CH)
SKODA Superb III 5 portes (3V3) ( 03.2015 - ... , 150 - 190 CH)
SKODA Superb III Break (3V5) ( 03.2015 - ... , 150 - 190 CH)
SKODA Kodiaq (NS7) ( 08.2016 - ... , 116 - 239 CH)
SKODA Karoq SUV (NU7) ( 07.2017 - ... , 143 - 190 CH)
SKODA Octavia IV Combi (NX5) ( 06.2020 - ... , 143 CH)
SKODA Octavia IV Berline (NX3) ( 06.2020 - ... , 143 CH)
VW
VW Golf IV 3/5 portes (1J1) ( 02.2000 - 06.2005 , 130 - 150 CH)
VW Golf VI 3/5 portes (5K1) ( 10.2008 - 05.2013 , 110 - 170 CH)
VW Golf V 3/5 portes (1K1) ( 10.2003 - 11.2008 , 136 - 170 CH)
VW Golf VII 3/5 portes (5G1, BQ1, BE1, BE2) ( 08.2012 - 08.2020 , 110 - 184 CH)
VW Polo IV 3/5 portes (9N) ( 11.2003 - 11.2009 , 130 CH)
VW Touran I (1T1, 1T2) ( 02.2003 - 05.2010 , 136 - 170 CH)
VW Tiguan I (5N) ( 09.2007 - 07.2018 , 110 - 184 CH)
VW Passat B5 GP Berline (3BG, 3B3) ( 11.2000 - 05.2005 , 130 - 136 CH)
VW Transporter T5 Van (7HA, 7HH, 7EA, 7EH) ( 04.2003 - 08.2015 , 84 - 180 CH)
VW Passat B6 Berline (3C2) ( 03.2005 - 11.2010 , 110 - 170 CH)
VW Transporter T5 Minibus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) ( 04.2003 - 08.2015 , 84 - 180 CH)
VW Scirocco III (137, 138) ( 08.2008 - 11.2017 , 136 - 184 CH)
VW Touran I (1T3) ( 05.2010 - 05.2015 , 110 - 177 CH)
VW Touareg I (7LA, 7L6, 7L7) ( 01.2003 - 05.2010 , 163 - 174 CH)
VW Golf Plus / Crossgolf (5M1, 521) ( 01.2005 - 12.2013 , 110 - 140 CH)
VW Passat B6 Variant (3C5) ( 08.2005 - 11.2010 , 110 - 170 CH)
VW Tiguan II (AD1) ( 01.2016 - ... , 110 - 240 CH)
VW Passat B7 Berline (362) ( 08.2010 - 12.2014 , 136 - 177 CH)
VW Transporter T6 Van (SGA, SGH) ( 04.2015 - ... , 84 - 204 CH)
VW Multivan T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) ( 04.2003 - 08.2015 , 84 - 180 CH)
VW Crafter 30-50 Van (2E) ( 04.2006 - 12.2016 , 88 - 163 CH)
VW Passat B5 GP Break (3BG, 3B6) ( 11.2000 - 05.2005 , 130 - 136 CH)
VW Caddy III Van (2KA, 2KH, 2CA, 2CH) ( 09.2005 - 05.2015 , 75 - 170 CH)
VW Touran II (5T1) ( 05.2015 - ... , 110 - 190 CH)
VW Caddy III Break (2KB, 2KJ, 2CB, 2CJ) ( 09.2005 - 05.2015 , 75 - 170 CH)
VW Eos (1F7, 1F8) ( 06.2006 - 08.2015 , 136 - 140 CH)
VW Amarok Pick-up (2HA, 2HB, S1B, S6B, S7A, S7B) ( 09.2010 - 05.2022 , 122 - 180 CH)
VW Passat CC (357) ( 05.2008 - 01.2012 , 136 - 170 CH)
VW Passat B7 Variant (365) ( 08.2010 - 12.2014 , 136 - 177 CH)
VW Sharan I (7M8, 7M9, 7M6) ( 03.2000 - 03.2010 , 115 - 150 CH)
VW Sharan II (7N1, 7N2) ( 05.2010 - 06.2022 , 115 - 184 CH)
VW T-Roc (A11) ( 09.2017 - ... , 150 - 190 CH)
VW Crafter Van (SY, SX) ( 09.2016 - ... , 102 - 177 CH)
VW Passat B8 Variant (3G5, CB5) ( 08.2014 - 03.2024 , 110 - 240 CH)
VW Golf VII Variant (BA5, BV5) ( 04.2013 - 08.2020 , 110 - 184 CH)
VW Bora Berline (1J2) ( 05.2000 - 05.2005 , 130 - 150 CH)
VW Transporter T6 Minibus (SGB, SGG, SGJ) ( 04.2015 - ... , 84 - 204 CH)
VW Golf Sportsvan (AM1, AN1) ( 02.2014 - 08.2020 , 110 - 150 CH)
VW Beetle 3/5 portes (5C1, 5C2) ( 04.2011 - 09.2018 , 110 - 150 CH)
VW Passat B8 Berline (3G2, CB2) ( 08.2014 - 03.2024 , 110 - 240 CH)
VW Bora Variant (1J6) ( 11.2000 - 05.2005 , 130 - 150 CH)
VW Jetta Mk5 (1K) ( 08.2005 - 10.2010 , 136 - 170 CH)
VW Golf V Variant (1K5) ( 06.2007 - 07.2009 , 136 - 140 CH)
VW Caddy IV Van (SAA, SAH) ( 05.2015 - 09.2020 , 75 - 150 CH)
VW Golf IV Variant (1J5) ( 11.2000 - 06.2006 , 130 - 150 CH)
VW Golf VI Variant (AJ5) ( 07.2009 - 07.2013 , 110 - 140 CH)
VW Jetta Mk6 (162, 163, AV3, AV2) ( 10.2010 - 12.2017 , 110 - 150 CH)
VW Crafter 30-35 Bus (2E) ( 04.2006 - 12.2016 , 88 - 163 CH)
VW CC (358) ( 11.2011 - 12.2016 , 136 - 184 CH)
VW Crafter 30-50 Camion plate-forme/Châssis (2F) ( 04.2006 - 12.2016 , 88 - 163 CH)
